Datasheet: Network Data Aggregator (ANDA)

-


Avionics Interface Technologies

Fibre Channel & Ethernet Data Aquisition Unit for Airborne & Rugged Networks

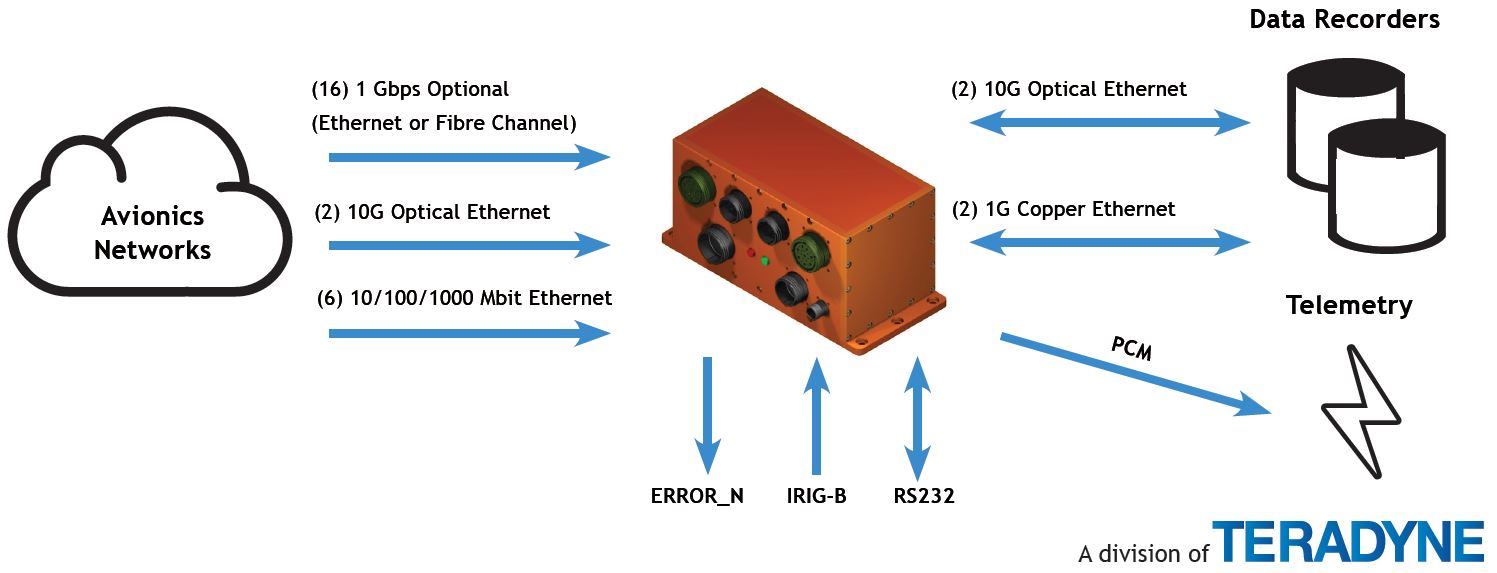

AIT’s Avionics Network Data Aggregator (ANDA) is a high-performance, ruggedized, flight-ready network data aggregator system capable of monitoring, selecting, and aggregating Fibre Channel and Ethernet data from multiple input streams for forwarding to data recorders and telemetry interfaces. The ANDA provides (16) 1 Gbp optical monitoring inputs which can be independently configured to capture Fibre Channel or Ethernet data. The ANDA also provides (6) 10/100/1000 Mbps (BASE-T) Ethernet monitor inputs and (2) 10 Gbps optical Ethernet monitor inputs.

Image Title


KEY FEATURES
  • 16 Optical 1 Gbps Inputs independently configurable as Ethernet or Fibre Channel
  • 6 Copper 10/100/1000 Mbps Ethernet inputs
  • 2 Optical 10Gbps Ethernet inputs
  • (2) 1 Gbps and (2) 10 Gbps Ethernet outputs to data recorders
  • Supports time synchronization to IRIG-B DC or IEEE 1588 master clocks
  • PCM Telemetry Output (up to 20 Mbps)
  • Telemetry outputs to Network Gateways using TmNS (Telemetry Network System) protocol
  • Small, lightweight enclosure tested to meet operation in military airborne environments
  • Operating Temperature range: -45 C to 71 C
  • Compliant with MIL-STD-461E EMI Requirements, MIL-STD-1704F Aircraft Power Requirements, & MIL-STD-810 Shock & Vibration Requirements
  • Supported by Ground Support Software suite via Ethernet LAN
  • Built-in-test with continuous status provided
  • MIL-STD-810G, MIL-STD-461F, & MIL-STD-704A Compliant

Whitepaper

Data Acquisition in High Speed Ethernet & Fibre Channel Avionics Systems

As avionics applications grow in complexity and sophistication, these systems are increasingly turning to the use of high speed serial data networks based on Ethernet and Fibre Channel to meet the ever increasing demand for data bandwidth. As these types of networks become more common in new avionics systems, new and unique solutions are required for flight test data acquisition. This paper addresses several of the key considerations which much be addressed when designing a flight test system for the acquisition of avionics Ethernet and Fibre Channel data



About Avionics Interface Technologies


Avionics Interface Technologies (AIT) is a leading designer and manufacturer of high-performance flight modules, test and simulation modules, embedded solutions, databus analyzers, and support systems for both the commercial aerospace and defense industries. Our field-proven modules support MIL-STD-1553A/B, MIL-STD-1760E, ARINC 429, ARINC 615A, Combination MIL-STD-1553/ARINC 429, ARINC 664, and Fibre Channel.

Learn More...
AIT Headquarters
14769 California St.
Omaha, NE 68154. United States
