New Trans-Inductor Voltage Regulator (TLVR) Power Inductors for Voltage Regulator Modules (VRMs) and Point-of-Load (PoL) Converters

-


https://files.constantcontact.com/eca439d5301/2db52554-dc63-460d-a1d0-bf0d277b55bc.gif?rdr=truea=1134778890178
 
  • Designed for use in voltage regulator modules (VRMs) and point-of-load (PoL) converters utilizing the latest multi-phase topologies
  • Low DCR, tight magnetic coupling, and excellent thermal performance, enabling fast transient response
  • TLVR power inductors are well-suited for next-generation CPUs, GPUs, ASICs, and SoCs used in servers, data centers and various other power applications
  • Compact footprints for high power density

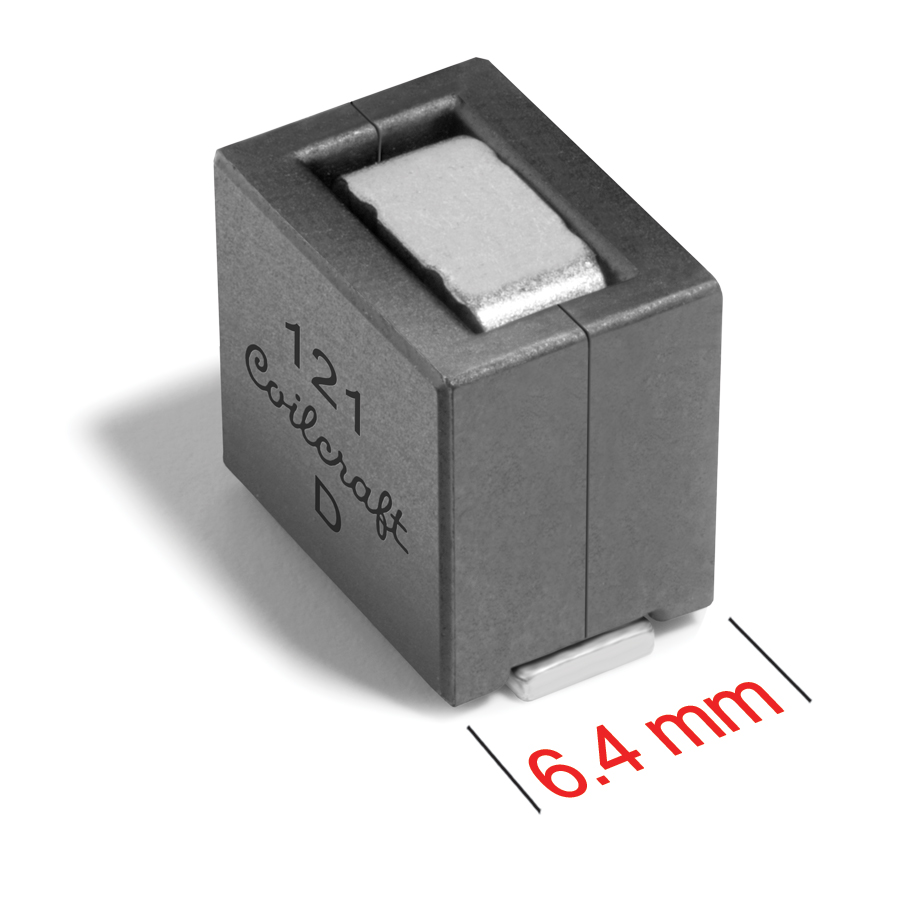

SLV9080 Series

  • High saturation current up to 120 A
  • Seven inductance values from 50 to 200 nH
  • Compact 9.15 × 6.4 mm footprint
  • AEC-Q200 qualified

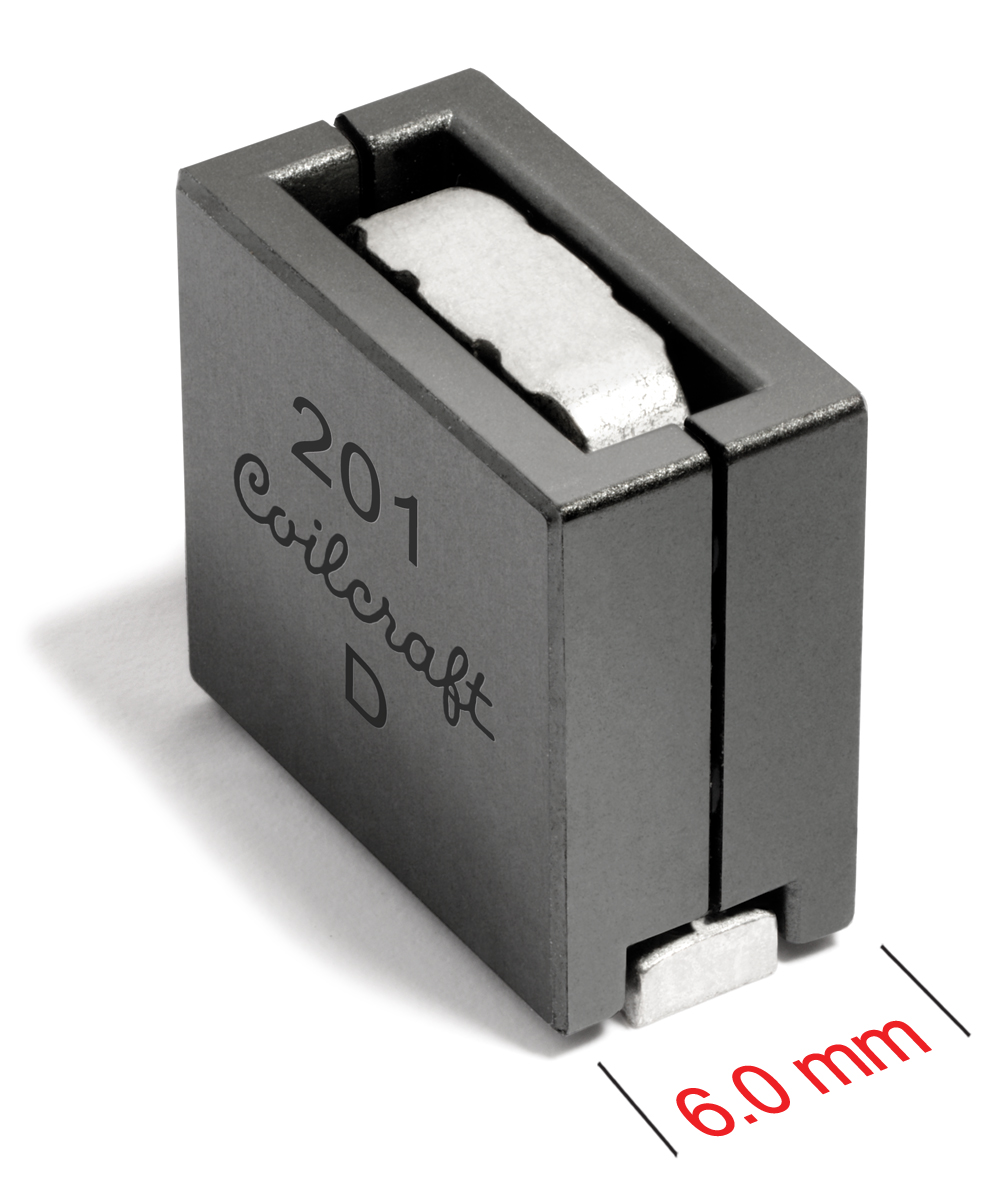

SLV1211 Series

  • High saturation current up to 152 A
  • Six inductance values from 70 to 200 nH
  • Compact 12 × 6 mm footprint
